How To Set Up Screen Sync For Brightsign & Samsung Tizen Devices

What Is Screen Sync?

Screen Sync is a feature that allows multiple digital signage devices to display content at the exact same time. This is especially useful for video walls, multi-screen installations, or any environment where synchronised playback creates a seamless viewing experience.

With Screen Sync, one device acts as the Master, coordinating playback instructions and ensuring all other connected devices remain perfectly aligned. This process happens automatically over the local network, providing smooth and reliable synchronisation without the need for additional external hardware.

How Users Can Benefit From Screen Sync.

Users can create synchronised content experiences by grouping screens together within the NowSignage platform. Once the desired screens are added to a Sync Group and the devices are rebooted, Screen Sync takes care of the rest. The system continuously ensures that each device stays in sync with the Master device, maintaining consistent playback across all screens.

Screen Sync is ideal for:

• Multi-screen video displays
• Retail environments requiring unified visual messaging
• Corporate or event spaces with coordinated screens


  ---



Preparing Your Screen Sync Setup

1. Log in to your NowSignage account and create any required screens, schedules, and playlists.
2. Navigate to the Apps section and select the Screen Sync app.
3. Click + Add Sync Group (top-right corner) and assign a name to the group.
4. Add the screens to be included in the sync group by selecting them from the list.

Additional Settings

• Re-Sync Interval:
  • This setting is not required when using the latest app version referenced in this guide.
• Websocket Server Address:
  • This field is only required when using Android Devices.

Once the group has been configured, reboot all the associated devices to complete the setup.

Verifying Device Connectivity

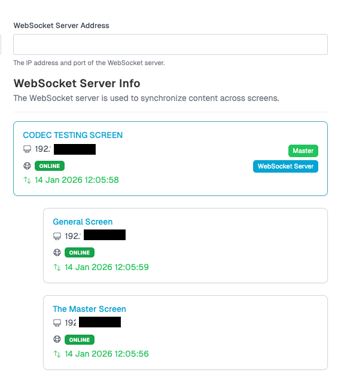

After rebooting, return to the Screen Sync app in your NowSignage account and refresh the page. The interface will update to display:

• The designated Master device
• The connection status of each device
• Confirmation of connection to the local server.

Status Indicators:

• Green date/time: ✅ Connected to the local server.
• Red date/time: ❌ Not Connected: The device requires a reboot.

Firewall & Network Requirements.

Appropriate firewall and network configuration is essential for NowSignage to function correctly. A full list of required domains and ports can be found on the following link:

https://knowledgebase.nowsignage.com/firewall-installation-requirements

Screen Sync Local Server Requirements

To ensure successful communication between devices:

• Internal LAN communication be enabled.
  • Devices must be allowed to communicate with one another on the same local network.
• Player devices must be reachable on the network.
  • Screen sync operates by listening for synchronisation commands on port 5001.
  • The local server runs using the device's IP address and this port, allowing seamless interaction between devices.
