How To Set Up Secure Dashboards

Display dashboards safely without needing to store passwords on a screen

Secure Dashboards: A Comprehensive Guide Overview

The Secure Dashboards feature allows NowSignage to display password-protected web pages on digital signage by taking periodic screenshots through the CMS. The system opens an automated incognito browser and can handle the login process automatically, enabling content from secure dashboards to be displayed without manual intervention.



Important:

Live data is not supported by this feature; the minimum refresh interval is five minutes. We recommend thoroughly testing your Secure Dashboards workflow within the CMS using your intended webpage before deployment, as certain sites may restrict automation or block screenshots from being captured accurately.



Caution:

Given the variety of webpages, not all secure webpages are compatible with the Secure Dashboards app.

The following login pages have been tested and are not currently supported:

  • Microsoft PowerBi
  • Azure B2C
  • Google login pages
  • Microsoft login page



Setting Up Secure Dashboards



Step 1: Activate the App

  1. Log into your NowSignage account.
  2. Navigate to your project and select the 'Apps' section from the left-hand panel.
  3. Click on the Secure Dashboards app and install (activate) it.

Please note: If the Secure Dashboards feature is not available in your account, please raise a support ticket request, and the team will enable this.

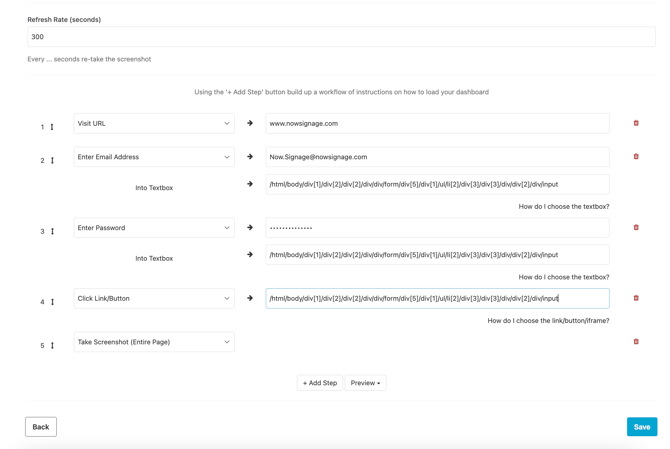

Step 2: Create a Secure Dashboard

  1. Click on '+ Add Secure Dashboard' to start a new dashboard.
  2. Select 'New (Blank)' and name your dashboard, setting it as active.
    • Choose 'Visit URL' or 'Visit URL with delay' to allow the webpage to load.
    • Add further steps such as entering an email/username and password.
    • Use the 'Into Textbox' field to specify where data should be entered by copying and pasting from the webpage.
      To get this information for your text box/button, please read the following guidance: 'How do i choose the link/button/iframe?':
  3. Configure the final step to capture a screenshot.
  4. Click 'Save' to generate a preview. If errors occur, edit the dashboard to correct them.



Generate Preview: Occasionally, the preview might display an error if the added workflow has encountered a failure. If this happens, edit your dashboard to identify and correct the issue.

Screenshot 2025-04-17 at 16.16.48

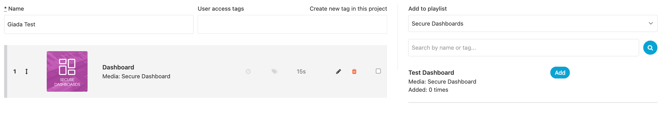

Step 3: Add the Dashboard to Your Playlist

  1. Once satisfied with the preview, add the dashboard to your playlist:
    • Create a new playlist or edit an existing one.
    • In the 'Add to playlist' area, select 'Secure Dashboards' from the drop-down list.
    • Choose the desired dashboard, click 'Add', name it, set the duration, and click 'add to playlist'.
  2. The dashboard will update automatically based on the set refresh rate.





Important Considerations

  • Secure Dashboards operate using an incognito browser that automates the login process and captures a webpage screenshot.

  • The incognito browser is set to UTC time by default, and there is currently no option to alter the timezone.

Troubleshooting/FAQ

  • If modifications are made to a secure dashboard, remove the original playlist item and re-add it to reflect updates.

For further assistance or guidance, please raise a support ticket request.
